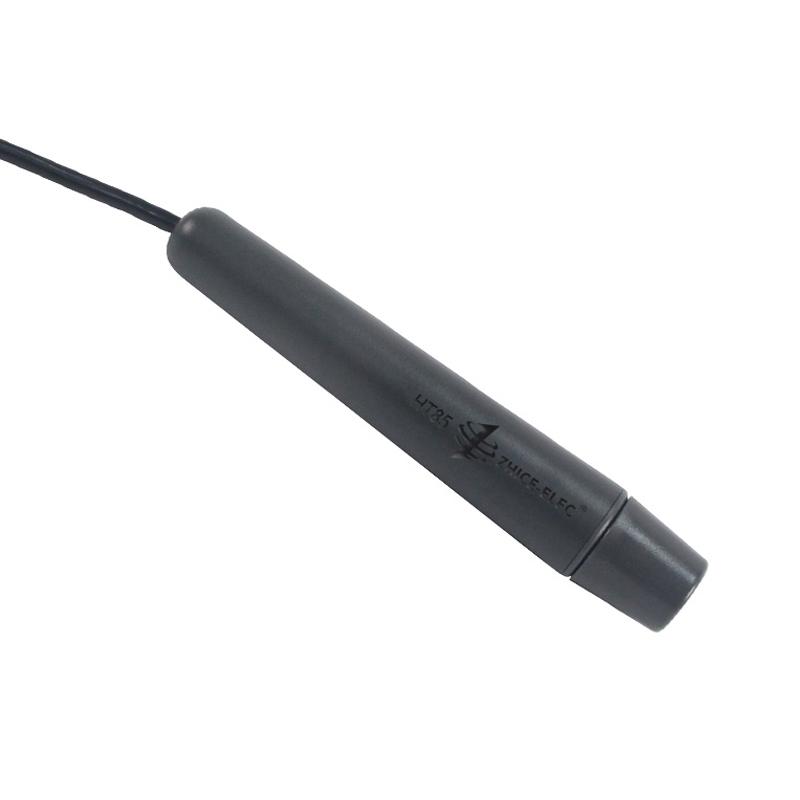

For relative humidity and temperature measurements, with excellent accuracy, repeatability and long-term stability, HT85-S can be used in HVAC, food, building equipment, paper, textile, medicine, electronics, equipment and other industries.
Technical index
| Range | -40-105℃ 0-100%RH |
| Accuracy |
±0.3℃(5-60℃) ≤±2.0%RH(0-90%RH@25℃) |
| Repeatability | 0.15%RH |
| Lag | ±0.8%RH @25℃ |
| Response time |
Temperature 2s Humidity 4s |
| Long-term drift |
Temperature less than 0.03℃/yr Humidity is less than 0.2%RH/yr |
| Signal output |
0-1VDC = 0-100%RH 0-1VDC = -40-60℃ |
| Power supply | 4.5...5.5VDC |
| Power consumption | 3.5mA@5V |
| Cable length | Maximum 10m |
| Probe material | polycarbonate |
| Dimension | φ24*146mm |
| Protection class | IP30 |
