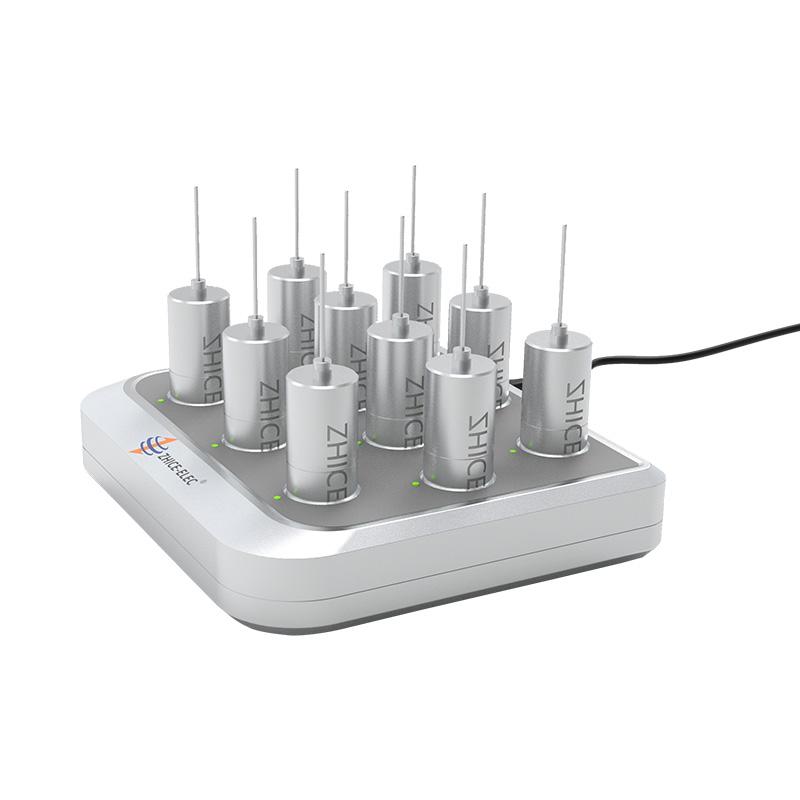

ZCLOG Wireless Thermal Validation System

ZCLOG Wireless Thermal Validation System

ZCLOG is widely used in industries such as biopharmaceuticals, food, metrology and testing. The probe can be arranged conveniently and quickly, and the position of the detection point is not physically restricted. Datalogger is available for temperature, temperature & humidity, temperature & pressure models and the system also includes data readers and the software.

New Products
  • Product Details

ZCLOG is widely used in industries such as biopharmaceuticals, food, metrology and testing. The probe can be arranged conveniently and quickly, and the position of the detection point is not physically restricted. Datalogger is available for temperature, temperature & humidity, temperature & pressure models and the system also includes data readers and the software.





Features

  • High accuracy, Energy efficient

  • Available in various probe typle

  • Withstand high pressurec, waterproof

  • Various matching software

  • Programmable sampling speed, start, hold and stop

  • Simple maintenance, users can replace the battery and calibrate by himself

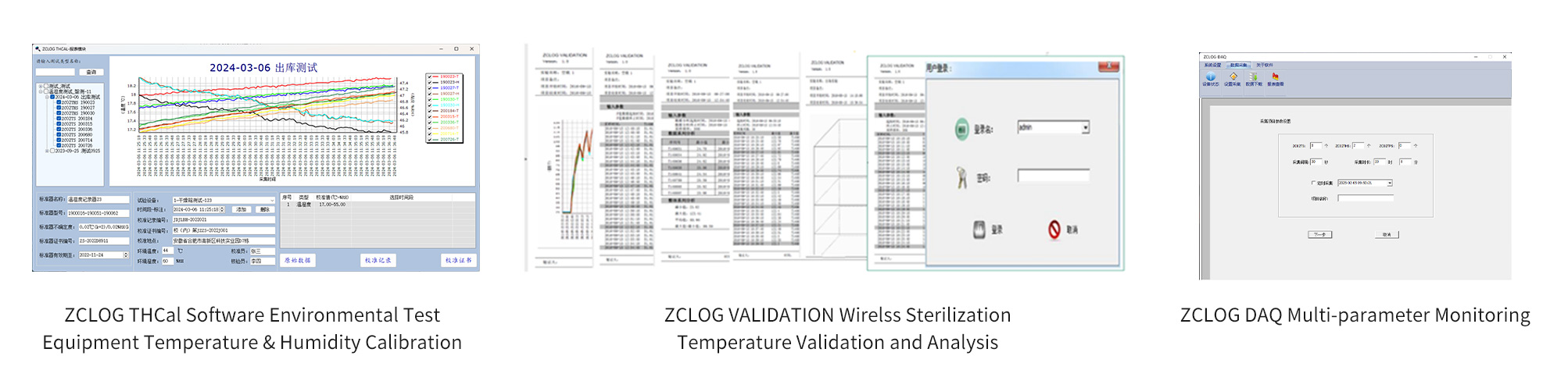

Software

Specifications

Model

ZCLOG-Short Probe ZC02TS-P

ZCLOG-Hard Probe ZC02TS-HP

ZCLOG-Soft Probe ZC02TS-SP

Temperature Humidity

ZC02THS

Temperature Pressure

ZC02TPS

Range

-40℃~150℃/0℃~150℃

(available in 2 ranges)

-40℃~125℃     0~100%RH -20℃~140℃

0~5bar (absolute pressure)

Resolution

0.01℃

0.01℃ , 0.01%RH 0.01℃ , 1mbar
Accuracy

±0.1℃ / ±0.05℃ (customized)

≤±0.3℃(5~60℃) ,

≤±2.0%RH

(0~90%RH@25℃)

±0.1℃ , ±10mbar
Size(mm) D x H:24.6 x 62 / 24.6 x 37 / 24.6 x 20 24.6 x 64 24.6 x 58
Sampling Programmable.progressively at 1 second interval
Storage 60000
Battery Approximately 3000000 data sets can be collected

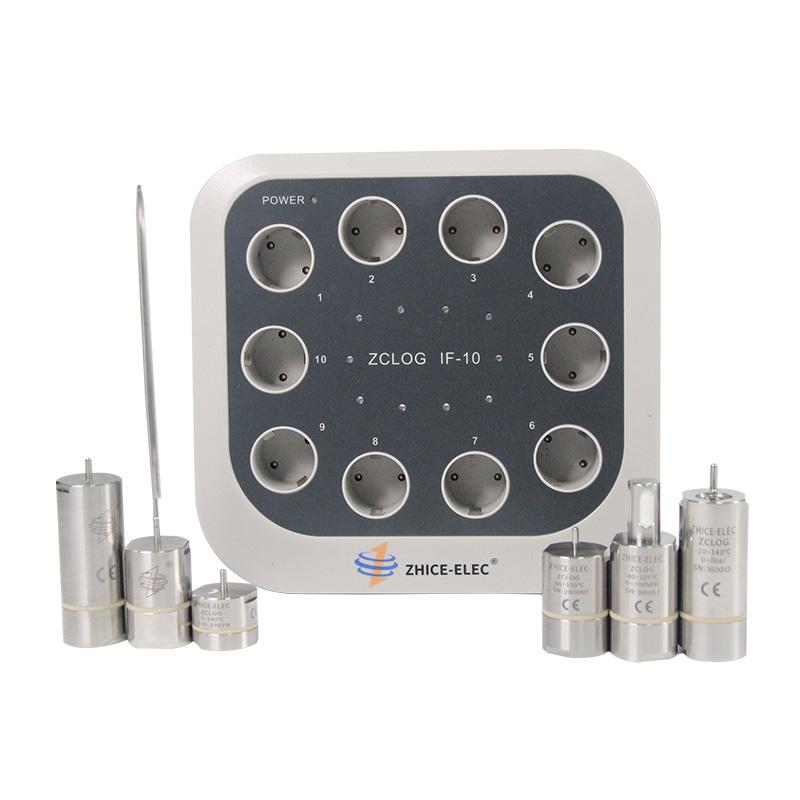

Adapter 10 channels
Communication USB
Warranty 2 yr
